The ALGLS Series serrated top aluminium trench grates are designed predominantly for pedestrian applications. They are commonly used in office building entrances, homes, parks, recreational harbour or beach foreshores, schools, hospitals, hotels, showrooms, arenas, stadiums, exhibition and convention centres etc.

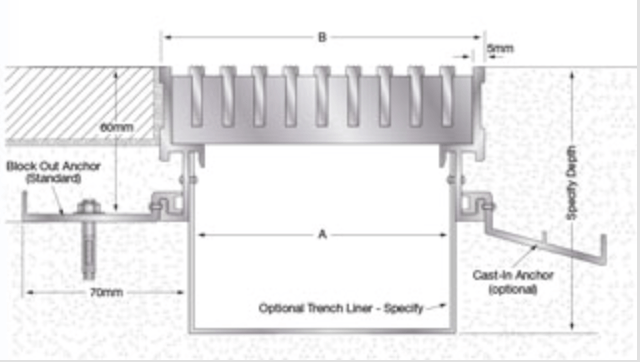

The ALGLS Series consists of a frame that can be supplied with or without an integrated galvanised trench liner, making the frame and liner (if supplied) a permanent part of the floor, whilst the individual grating sections will drop into the frame, ensuring easy removal for access and cleaning. The ALGLS Series Grates and Frames can be supplied in custom lengths to 4,000mm and factory manufactured fully welded angles and T’s are available for the grates, frames and trench liners if required.
On request, the system is also available with block ends for the frames and trench liners. When the trench liner is used and factory fabricated block ends installed, the system will be an enclosed trough. Latham can also supply hidden locking mechanisms for the ALGLS Series Grate and/or welded spigots on the trench liner if required.
