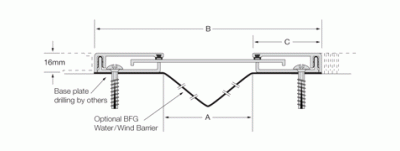

The Latham Ultimate Series Shallow 25mm Deep floor expansion joint covers are available with aluminium and stainless steel cover plates; this series can carry a BFG water gutter if required. The series has a depth below the finished floor height of 25mm. The series is designed to be installed generally into a preformed recess although in some applications the product may not require a recess, depending on the type and depth of the floor finish. When the installation structural joint width exceeds 50mm the Series can accommodate the Latham Fire Barrier system.
The Latham Ultimate Series Shallow floor expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, shopping centres and airports etc. These joint covers can be used in conjunction with many floor finishes such as tile, timber, concrete, vinyl, direct stick carpet and carpet tiles, epoxy floors etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
